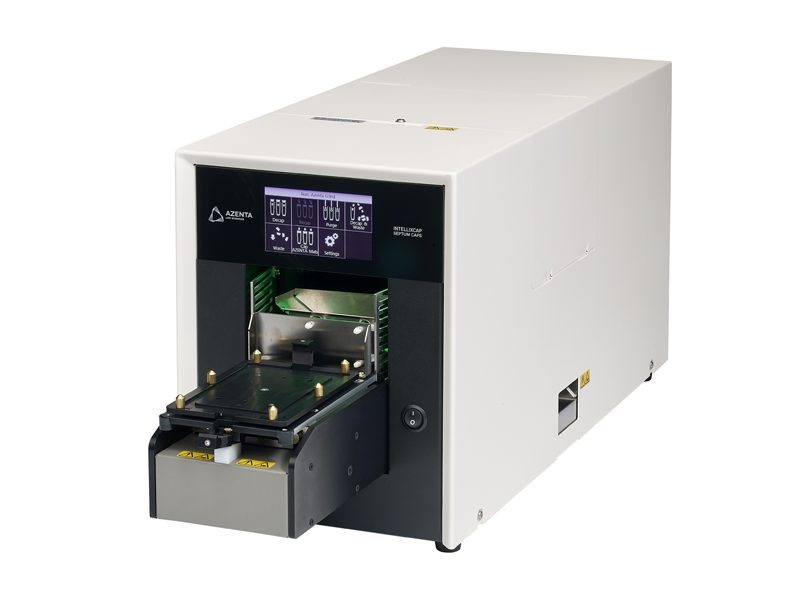

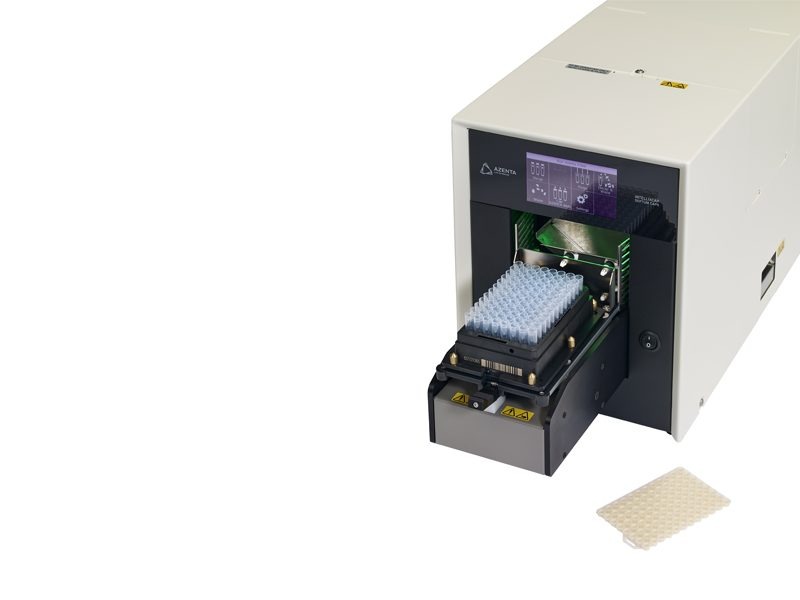

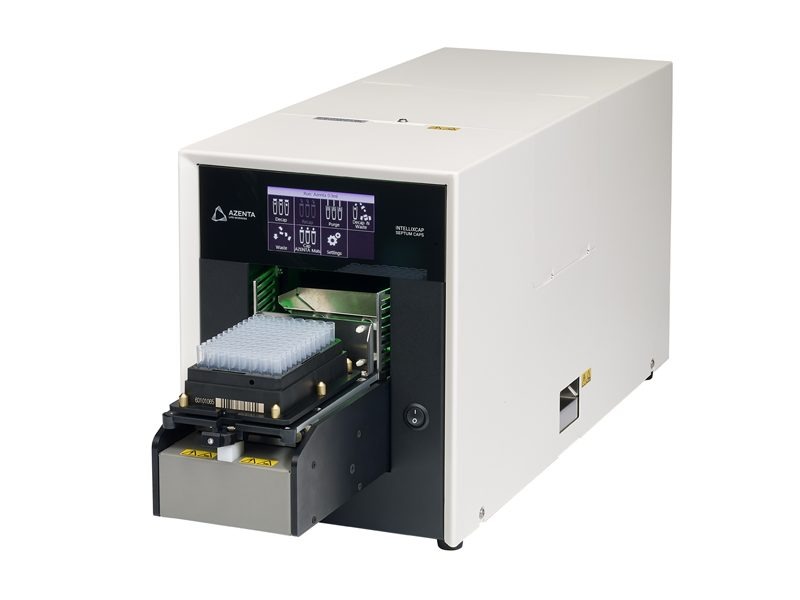

Azenta IntelliXcap Automated Septum Cap Decapper/Recapper, 96-Format

The Azenta Life Sciences IntelliXcap™ Automated Septum Cap Decapper/Recapper 96-Format is designed for automated capping, decapping, recapping, and disposal of septum caps from full 96-format SBS racks of sample storage tubes. The system can also apply new Azenta septum cap mats, eliminating the need for a separate capping instrument.

Designed for standalone operation or integration into automated laboratory systems, the IntelliXcap Septum Cap Decapper/Recapper supports validated 96-format sample storage tubes and TPE caps from Azenta and other manufacturers. The system does not require compressed air and includes an Azenta capping module and adaptor set.

Technical Features

• Automated capping, decapping, recapping, and disposal of septum caps
• Processes full 96-format SBS racks of sample storage tubes
• Compatible with validated Azenta and selected third-party 96-format sample storage tubes
• Supports TPE septum caps
• Applies new Azenta septum cap mats directly to tubes
• Capping module included for Azenta labware
• No compressed air required
• Touch-panel instrument control
• Suitable for standalone use or integration into automated laboratory systems
• Optional single-column harpoon supports column-based decapping and recapping
• Purge module allows an inert gas of choice to be layered over samples
• Vibration chute provides automated cap disposal
• Suitable for biobanking, compound libraries, and other high-throughput sample storage applications

Specifications

• Tube Format: 96-format SBS racks
• Cap Type: Septum / TPE caps
• Dimensions: 770 mm D × 255 mm W × 330 mm H
• Weight: 18.5 kg
• Weight with Capping Module: 20.5 kg
• Ambient Operating Temperature: 15°C to 35°C
• Power Supply: 100–240 VAC ±10%

Download Azenta IntelliXcap Automated Septum Cap Decapper/Recapper 96-format Technical Specifications
