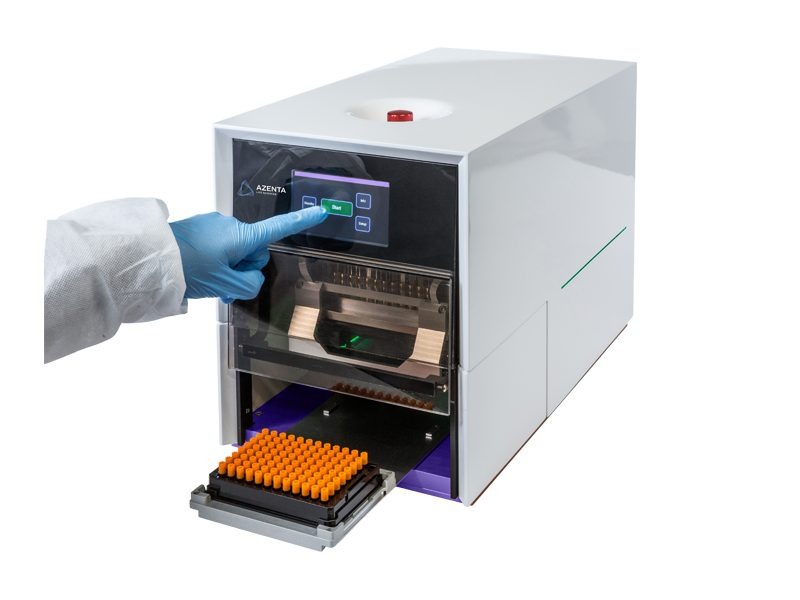

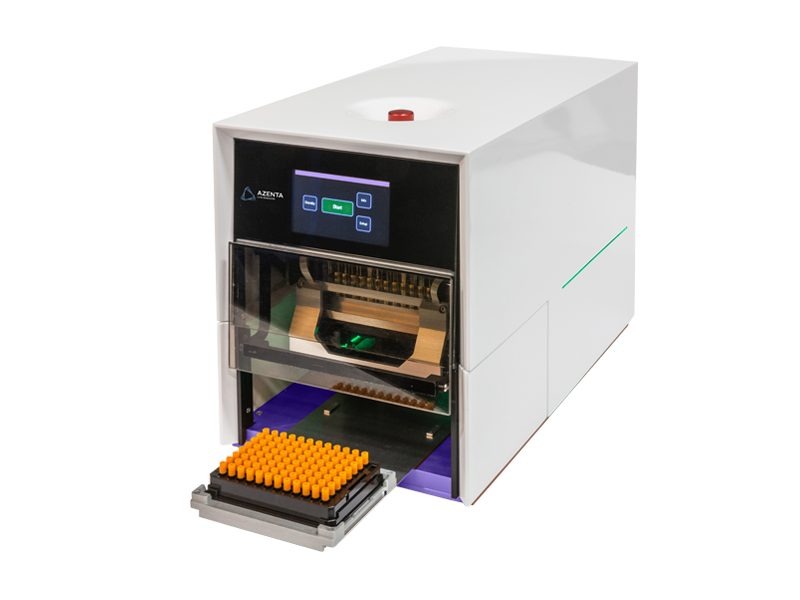

Azenta IntelliXcap Automated Screw Cap Decapper/Recapper, 96-Place Format

The Azenta Life Sciences IntelliXcap™ Automated Screw Cap Decapper/Recapper 96-Format is designed for automated capping, decapping, and recapping of screw-cap sample storage tubes in 96-format racks. The system processes an entire rack and uses interchangeable cap-driver cartridges to accommodate multiple tube and cap configurations, including internal- and external-thread screw-cap tubes.

Designed for standalone operation or integration into automated laboratory workflows, the IntelliXcap 96 features an automatic rack stage and electronic torque control for consistent cap removal and replacement. Cartridge drivers can be changed to support different compatible tube formats without specialist intervention.

Technical Features

• Automated capping, decapping, and recapping of 96-format racked sample tubes
• Compatible with Azenta Life Sciences sample storage tubes and many third-party tube formats when used with the appropriate cartridge
• Supports internal- and external-thread screw-cap tubes
• Interchangeable cap-driver cartridge design allows the system to be configured for different labware
• Electronic torque control
• Automatic glide rail/rack stage supports integration into automated workflows
• Touch-panel instrument control
• Operating temperature range: 5°C to 40°C
• No specialist intervention required for routine cartridge changes

Specifications

• Format: 96-tube rack
• Dimensions: 468 mm D × 256 mm W × 320 mm H
• Weight: 26.8 kg
• Decapping Torque: Up to 9.5 N/cm
• Recapping Torque: Up to 5.5 N/cm
• Operating Temperature: 5°C to 40°C
