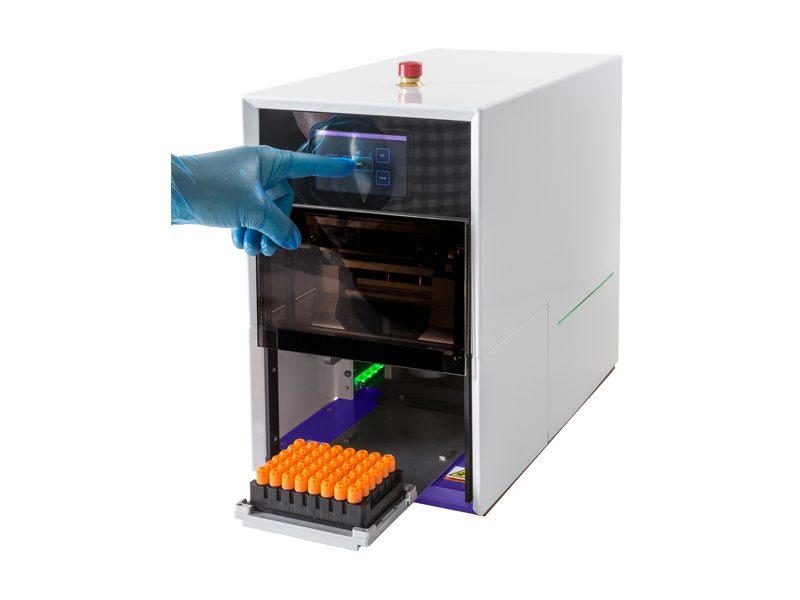

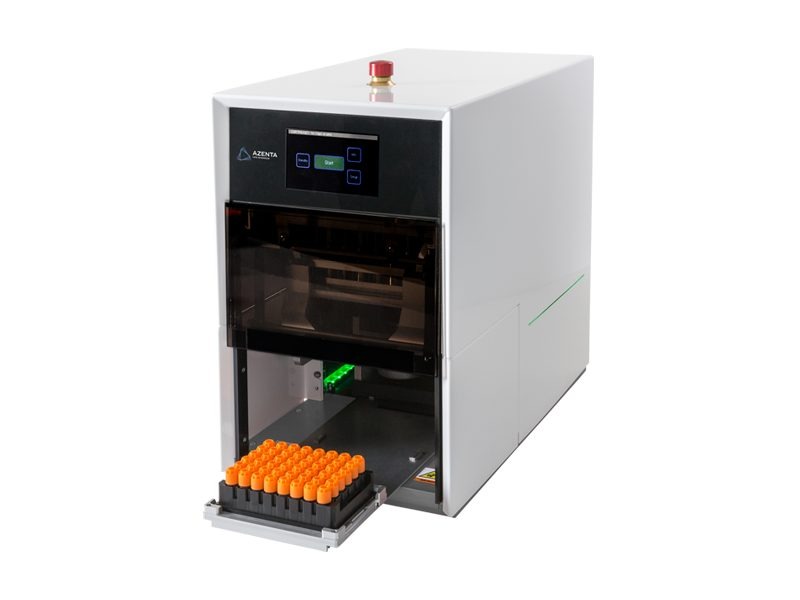

Azenta IntelliXcap Automated Screw Cap Decapper/Recapper, 48-Place Format

The Azenta Life Sciences IntelliXcap™ Automated Screw Cap Decapper/Recapper 48-Format provides automated capping, decapping, and recapping of screw-cap sample storage tubes in 48-format racks. Designed for medium- to high-throughput laboratories, the system can process a complete rack of 48 tubes in as little as 20 seconds and supports multiple tube types through interchangeable cap-driver cartridges.

The IntelliXcap 48 is compatible with both internal- and external-thread screw-cap tubes and can be configured for a variety of Azenta and third-party sample storage tubes. Its modular cartridge system allows users to change between compatible tube types in less than two minutes without specialist intervention. An extendable rack stage supports integration into automated laboratory workflows.

Technical Features

• Automated capping, decapping, and recapping of 48-format racked sample tubes
• Processes a complete 48-tube rack in approximately 20–40 seconds
• Decapping time as low as 20 seconds per rack
• Compatible with internal- and external-thread screw-cap tubes
• Interchangeable cap-driver cartridges support multiple tube types and manufacturers
• Cartridge changes can be completed in less than 2 minutes
• Electronic torque control reduces wear on cap drivers
• Touch-panel instrument control
• Automatic rack stage supports integration with automated workflows
• Optional extended stage available for automation applications

Specifications

• Tube Format: 48-format racked tubes
• Dimensions: 386.2 mm H × 256 mm W × 464.4 mm D
• Weight: 28.74 kg
• Capping/Decapping Speed: 20–40 seconds per rack
• Decapping Torque: Up to 30 N/cm
• Recapping Torque: Up to 15 N/cm
• Ambient Operating Temperature: 15°C to 35°C
