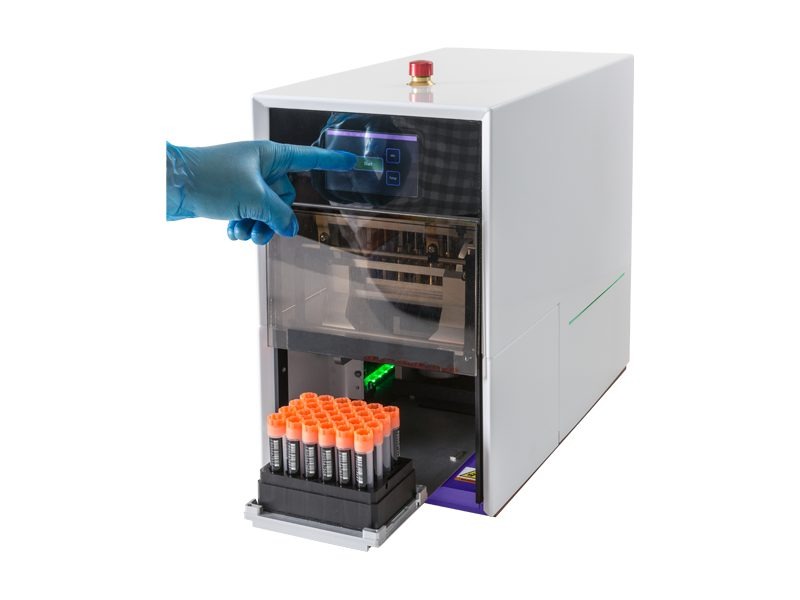

Azenta IntelliXcap Automated Screw Cap Decapper/Recapper, 24-Place Format

The Azenta Life Sciences IntelliXcap™ Automated Screw Cap Decapper/Recapper 24-Format provides automated capping, decapping, and recapping of screw-cap sample storage tubes in 24-format racks. Designed for laboratories managing compound libraries, biobanks, and other biological sample collections, the system can decap or recap a complete rack of 24 tubes in approximately 20–40 seconds.

The IntelliXcap 24 uses interchangeable cap-driver cartridges to accommodate multiple tube and cap configurations. Compatible cartridges are available for both internal- and external-thread screw-cap tubes, allowing one instrument to be configured for multiple supported tube types.

Technical Features

• Automated capping, decapping, and recapping of 24-format racked sample tubes
• Decaps a complete rack of 24 tubes in as little as 20 seconds
• Typical capping/decapping cycle time of 20–40 seconds per rack
• Compatible with Azenta Life Sciences sample storage tubes and many third-party tube formats when used with the appropriate cartridge
• Supports internal- and external-thread screw-cap tubes
• Fully automated interchangeable cap-driver cartridge system
• Cartridge changes can be completed in less than 2 minutes
• No specialist intervention required for routine cartridge changes
• Electronic torque control helps reduce wear on cap drivers
• Touch-panel instrument control
• Rack stage can be extended to support integration into automated laboratory workflows
• Compatible with a wide range of custom and standard driver cartridges

Specifications

• Tube Format: 24-format racked tubes
• Dimensions: 386.2 mm H × 256 mm W × 464.4 mm D
• Weight: 27.96 kg
• Capping/Decapping Speed: 20–40 seconds per rack
• Ambient Operating Temperature: 15°C to 35°C
