Azenta Express Standalone Rack Reader with DP5 Standard Software, 1 reader
Item #T40-185 Mfg #DP5-E-STD

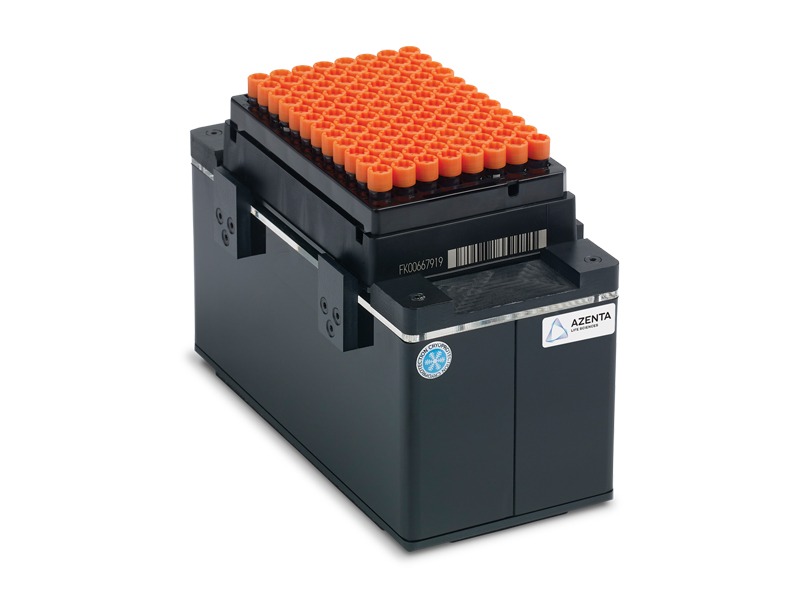

The Azenta Life Sciences Express Rack Reader with DP5 Standard is a compact, camera-based reader designed for rapid decoding of 2D DataMatrix-coded sample tubes in SBS-format racks. Its small footprint makes it suitable for benchtop use as well as integration into automated laboratory systems where space is limited.
The Express captures rack images in approximately one second and supports a broad range of SBS rack formats. It is compatible with commercially available 2D DataMatrix-coded tubes and uses Azenta DP5 Standard software for decoding, sample identification, data export, and integration with laboratory workflows.
Technical Features
- Camera-based 2D DataMatrix rack reader
- Approximately 1-second image capture time
- Compact footprint suitable for benchtop use or robotic integration
- Compatible with 24-, 48-, 96-, 240-, and 384-position SBS racks
- Reads commercially available DataMatrix 2D-coded tubes
- Automatic rack type detection
- AI-enabled missing-tube detection
- Identifies clear reads, damaged codes, and missing tubes
- Individual tube images and decoded results can be reviewed by rack position
- Patented imaging technology supports reading under difficult lighting conditions
- Includes DP5 Standard decoding software
- Remote-control capability supports automation integration
- Free lifetime DP5 software upgrades
- USB connection to host computer
Specifications
- Reader Type: Camera-based 2D DataMatrix rack reader
- Read & Decode Time: Approximately 1 second
- Imager Dimensions: 85 x 185 x 95 mm
- Weight: 1.4 kg
- Power Adapter Input: 110–220 VAC ±10 V
- Power Adapter Output: 5 VDC, 4 A
- Operating System: Windows 10 or Windows 11
- Warranty: 2 years
more
$14,464.00
