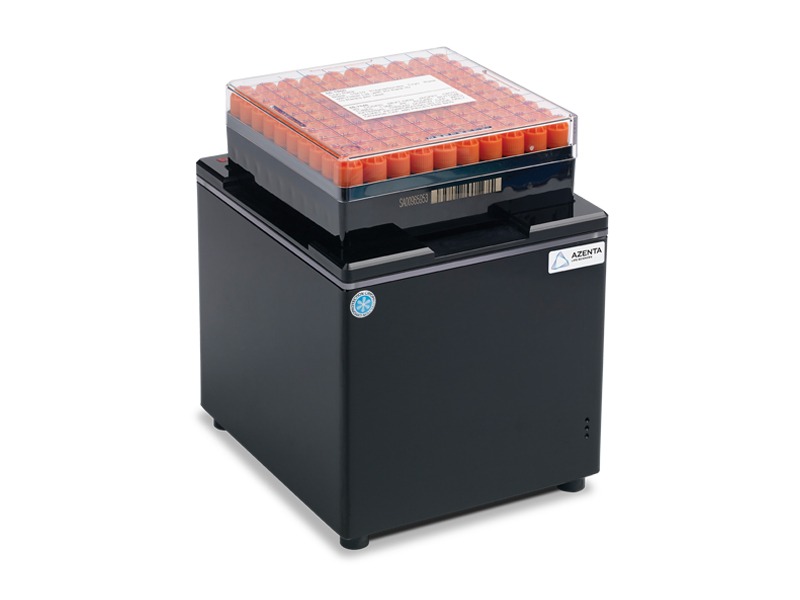

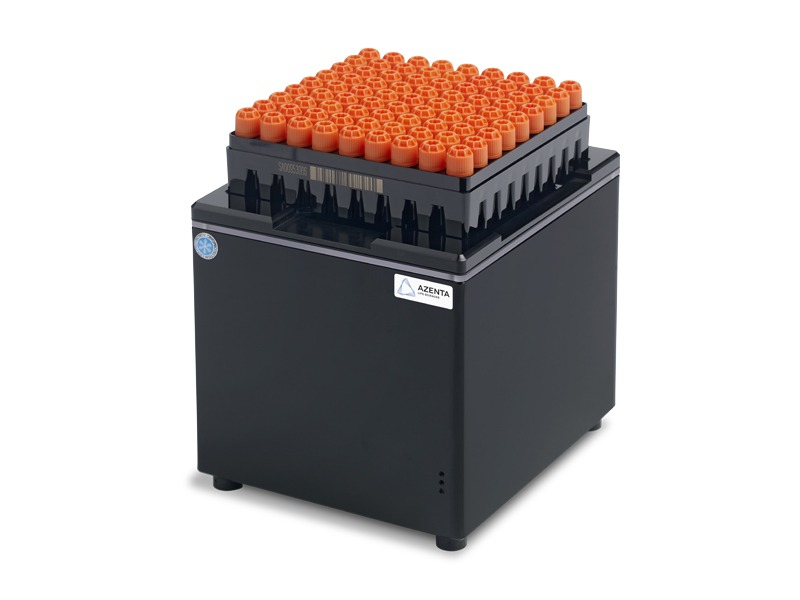

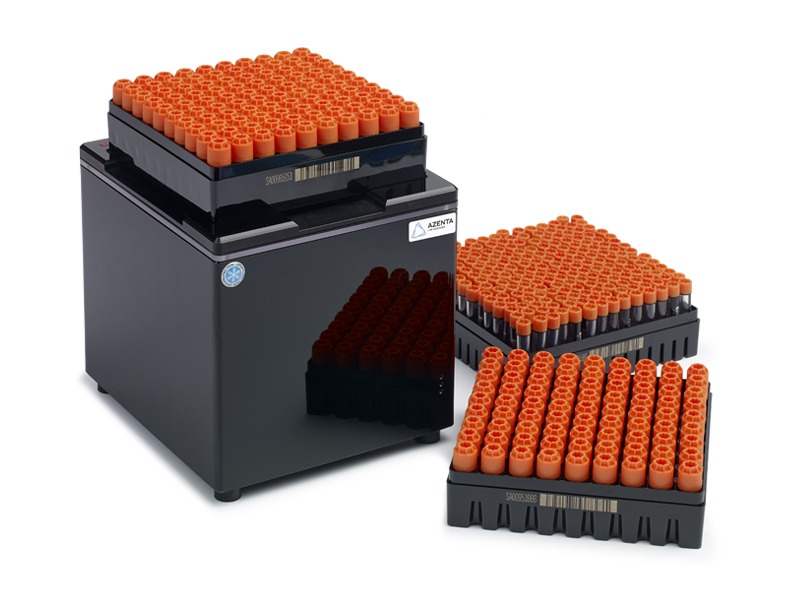

Azenta Cube Standalone Rack Reader with Cryoprotection and DP5 Standard Software, 1 Reader

The Azenta Life Sciences Cube Rack Reader with Cryoprotection™ and DP5 Standard is a compact, camera-based reader designed for rapid decoding of 2D DataMatrix-coded sample tubes in SBS-format racks and cryoboxes. The system provides read and decode times of approximately 1–2 seconds and supports a wide range of rack formats for sample tracking, inventory management, and automated laboratory workflows.

This configuration includes Azenta Cryoprotection, a passive proprietary coating that helps prevent condensation from forming on the reader window when scanning cold racks removed from cryogenic storage. The technology does not use heat or blown air, reducing the risk of warming or thawing samples during scanning.

Technical Features

• Camera-based 2D DataMatrix tube reader
• Approximately 1–2 second read and decode time
• Compatible with 24-, 48-, 96-, 240-, and 384-position SBS racks
• Compatible with 81-, 100-, and 196-position cryoboxes
• Reads commercially available DataMatrix 2D-coded tubes
• Compact footprint suitable for benchtop use or laboratory automation integration
• Cryoprotection helps prevent condensation on the scanner window when reading cold racks
• Passive Cryoprotection technology requires no heat or blown air
• Automatic rack type detection
• AI-enabled missing-tube detection
• Identifies clear reads, damaged codes, and missing tubes
• Individual tube images and decoded results can be reviewed by rack position
• Remote-control capability supports integration applications
• Includes DP5 Standard software
• Free DP5 software upgrades
• USB connection to host computer

Specifications

• Reader Type: Camera-based 2D DataMatrix rack reader
• Read & Decode Time: Approximately 1–2 seconds
• Dimensions: 152 × 174 × 146 mm
• Weight: 1.2 kg
• Power Adapter Input: 110–220 VAC ±10 V
• Power Adapter Output: 5 VDC, 4 A
• Operating System: Windows 10 or Windows 11
• Warranty: 2 years
