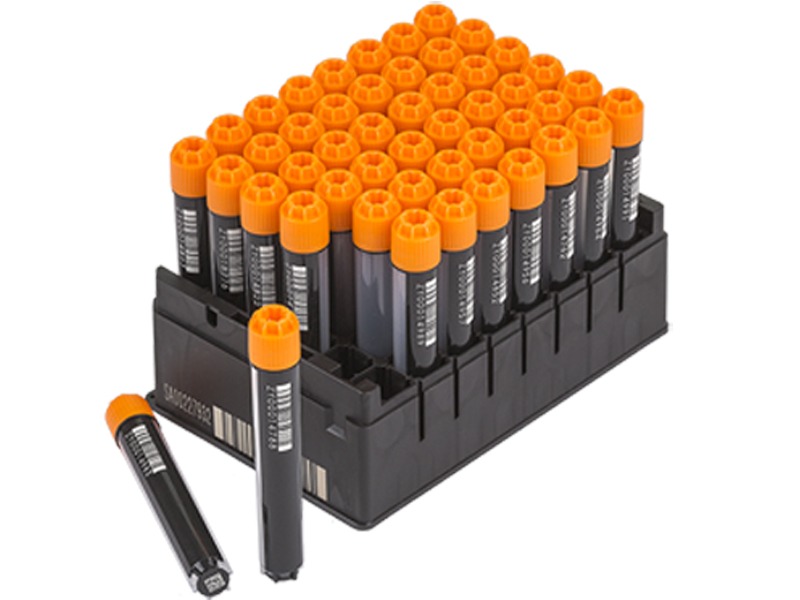

Azenta 3.8ml Tri-Coded Tube, Uncapped, Racked, 48-format, External Thread, 10 Racks/480 Tubes
Item #T39-875 Mfg #65-7514
The Azenta Life Sciences 3.8 mL Tri-Coded Tube, 48-Format, External Thread is designed for secure sample storage, identification, and tracking in biobanking, compound storage, and other biological or chemical sample management applications. Manufactured from high-quality virgin polypropylene, each tube incorporates three matching identification methods for reliable sample traceability throughout storage and handling workflows.
Each tube features a permanent 2D code laser etched on the base, along with a matching 1D linear barcode and human-readable number on the tube side. The high-contrast 2D code can be read without removing the tube from the rack and is designed to remain readable in conditions where frost or condensation may be present.
Technical Features
- 3.8 mL maximum working volume
- 48-format external-thread sample storage tube
- Manufactured from high-quality virgin polypropylene
- Permanent 2D code laser etched on the tube base
- Matching 1D linear barcode and human-readable number laser etched on the tube side
- All three identification codes are matched for sample traceability
- 2D codes can be read without removing tubes from the rack
- High-contrast coding supports reliable reading in frost or condensation conditions
- 100% code readability and uniqueness quality control
- Leak tested for sample security
- External-thread design provides greater working volume than comparable internal-thread tubes
- Compatible with screw caps
- Double-start screw-cap thread engages within a maximum 180° rotation to support automated capping and decapping
- Suitable for cryogenic storage down to -196°C
- Compatible with 48-format SBS racks and automated sample management systems
Specifications
- Maximum Working Volume: 3.8 mL
- Tube Format: 48-format
- Thread Type: External
- Tube Material: Polypropylene
- Tube Height: 75.0 mm
- Tube Height with Cap: 80.7 mm
- Inner Diameter: 9.6 mm
- Outer Diameter with Cap: 12.8 mm
- Center-to-Center Spacing: 13.5 mm
- Minimum Storage Temperature: -196°C
- Tube Height in Rack: 81.7 mm
- Overall Rack Height with Lid: 86.2 mm
more
$1,244.00
