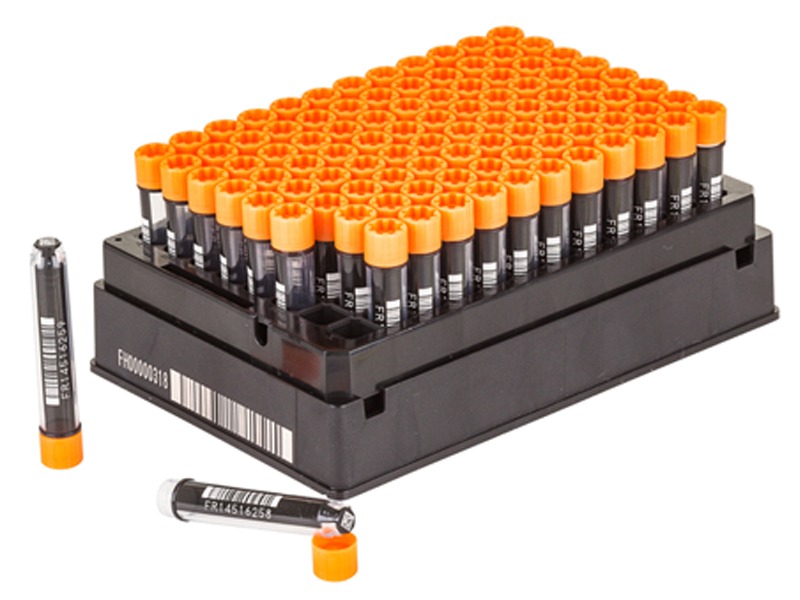

Azenta 1.0mL Tri-Coded Tubes, 96-Format, External Thread, HighBase Racked, Capped, 10 Racks, 960 Tubes

The Azenta Life Sciences 1.0 mL Tri-Coded Tube, 96-Format, External Thread is designed for secure sample storage, identification, and tracking in high-density laboratory workflows. Each tube incorporates three matched identification methods to support reliable sample traceability throughout storage, retrieval, and automated sample handling processes.

Technical Features

• 1.0 mL maximum working volume with screw cap
• 0.916 mL maximum working volume with TPE septum cap
• 1.2 mL maximum fill volume at 21°C
• 96-format external-thread design

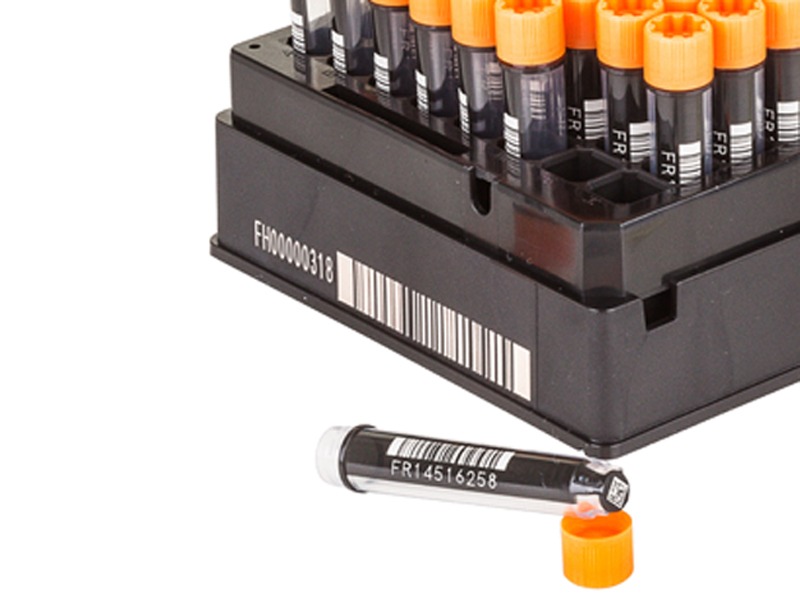

• Permanent 2D code on tube base
• Matching 1D linear barcode on tube side
• Matching human-readable number on tube side
• Three matched identifiers support sample traceability
• Compatible with screw caps or TPE septum caps
• Available capped or uncapped
• Available in bulk or pre-racked configurations
• Supplied in standard 96-well SBS-format HighBase racks
• Suitable for manual and automated sample handling workflows
• Suitable for cryogenic storage down to -196°C with screw caps
• Septum-capped configurations suitable for storage down to -80°C
• Capped
• Racked (HighBase Rack)
• 10 Racks, 960 Tubes

Specifications

• Tube Format: 96-format
• Thread Type: External
• Coding: 2D code on base; 1D barcode and human-readable number on side
• Tube Height: 46.2 mm
• Inner Diameter: 6.5 mm
• Outer Diameter with Cap: 8.7 mm
• Center-to-Center Spacing: 9.0 mm
• Minimum Storage Temperature with Screw Cap: -196°C
• Minimum Storage Temperature with Septum Cap: -80°C

Download Azenta Storage Rack Statement of Conformity

Download Azenta Sample Tube Statement of Conformity

Download Azenta Screwcap Statement of Conformity
