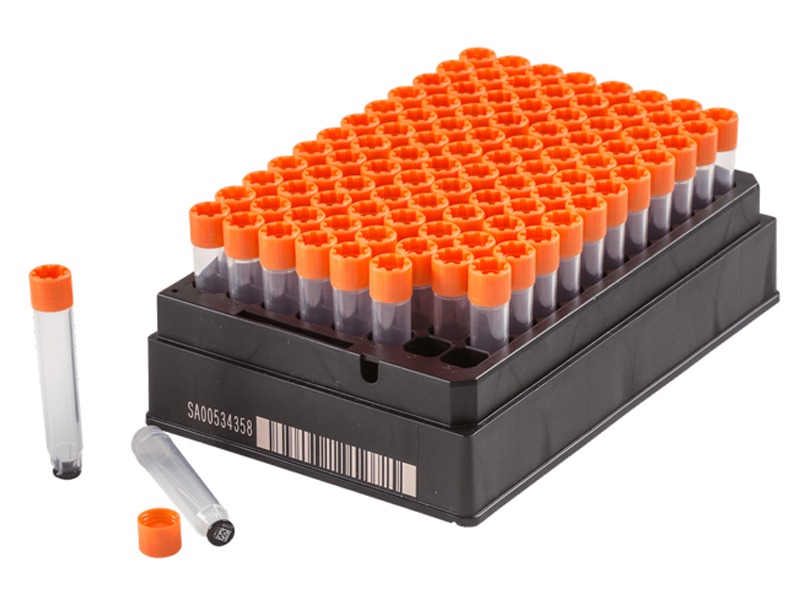

Azenta 0.9mL Dual-Coded Tubes, 96-Format, External Thread, HighBase Rack, Capped, 10 Racks/960 Tubes

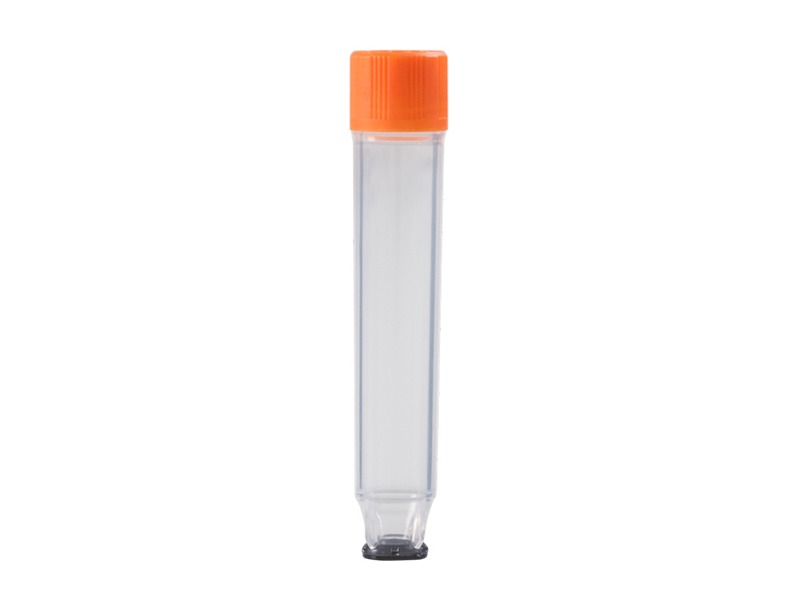

The Azenta Life Sciences 0.9 mL Dual-Coded Tube, 96-Format, External Thread is designed for secure sample storage, identification, and tracking in high-density laboratory workflows. Each tube incorporates a permanent 2D code and corresponding human-readable number on the base, providing both machine-readable and visual sample identification.

Technical Features

• 0.9 mL nominal sample storage tube
• 1.0 mL maximum fill volume at 21°C
• 96-format external-thread design
• Permanent 2D code on tube base
• Matching human-readable number on tube base
• Dual-coded configuration supports sample traceability
• External-thread design provides a secure seal and increased working volume
• Compatible with screw caps or TPE septum caps
• Suitable for automated whole-rack or individual tube barcode reading
• Suitable for manual and automated sample handling workflows
• Suitable for cryogenic storage down to -196°C with screw caps
• Septum-capped configurations suitable for storage down to -80°C

• Capped
• HighBase Racked
• 10 Racks/960 Tubes

Specifications

• Maximum Working Volume with Screw Cap: 0.911 mL
• Maximum Working Volume with TPE Septum Cap: 0.8877 mL
• Tube Format: 96-format
• Thread Type: External
• Coding: 2D code on base and human-readable number on base
• Tube Height: 42.3 mm
• Tube Height with Screw Cap: 45.7 mm
• Tube Height with Septum Cap: 43.5 mm
• Inner Diameter: 6.5 mm
• Outer Diameter with Cap: 8.7 mm
• Center-to-Center Spacing: 9.0 mm
• Minimum Storage Temperature with Screw Cap: -196°C
• Minimum Storage Temperature with Septum Cap: -80°C
