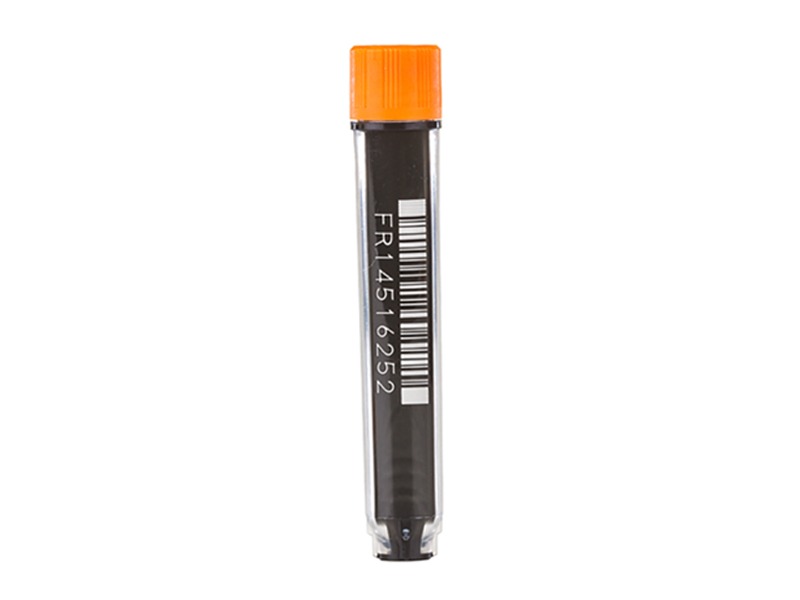

Azenta 0.8mL Tri-Coded Tubes, 96-Format, External Thread, HighBase Rack, Capped, 10 Racks/960 Tubes

The Azenta Life Sciences 0.8 mL Tri-Coded Tube, 96-Format, External Thread is designed for secure sample storage, identification, and tracking in high-density laboratory workflows. Each tube incorporates three matched identification methods to support reliable sample traceability throughout storage, retrieval, and automated handling processes.

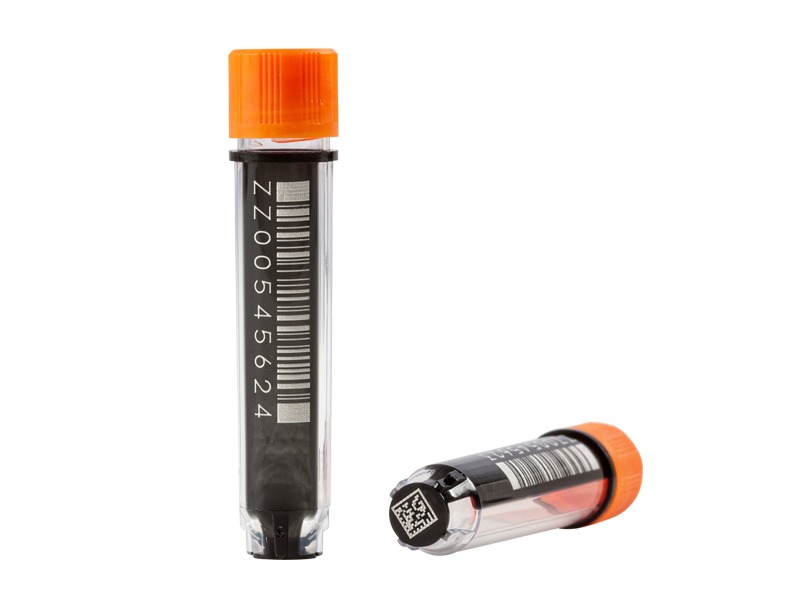

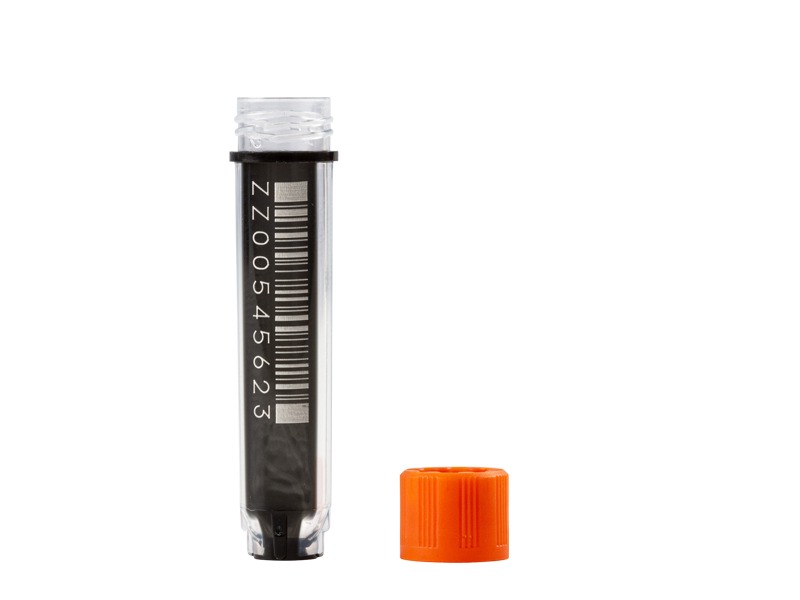

A permanent 2D code is laser etched on the tube base, while a matching 1D linear barcode and human-readable number are positioned on the tube side. The external-thread design supports secure closure with compatible screw caps or TPE septum caps and is suitable for use in manual and automated sample management systems.

Technical Features

• 0.8 mL maximum working volume with screw cap
• 0.7 mL maximum working volume with TPE septum cap
• 96-format external-thread design
• Permanent 2D code laser etched on tube base
• Matching 1D linear barcode on tube side
• Matching human-readable number on tube side
• Three matched identifiers support sample traceability
• Manufactured from high-quality virgin polypropylene
• Compatible with screw caps or TPE septum caps
• Suitable for automated barcode reading and sample tracking systems

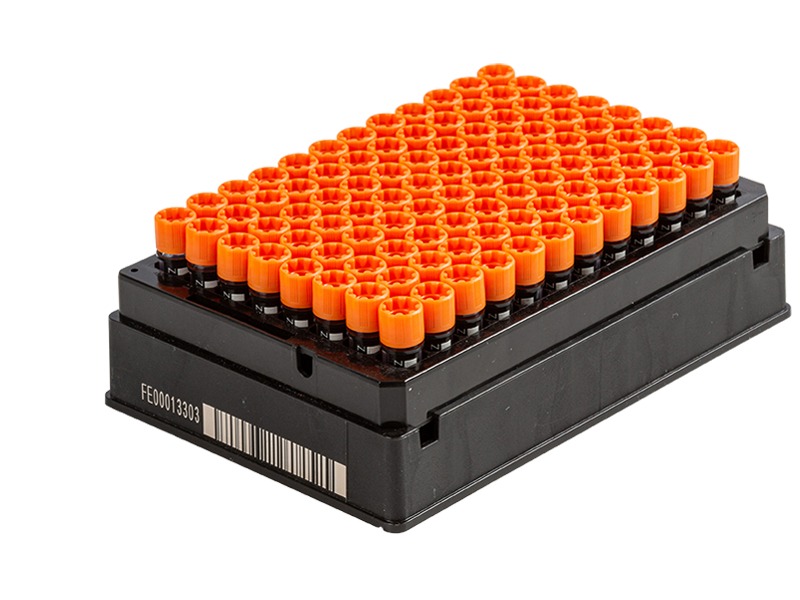

• Supplied in standard 96-well SBS-format racks
• Suitable for cryogenic storage down to -196°C with screw caps
• Septum-capped configurations suitable for storage down to -80°C
• Capped
• HighBase Racked
• 10 Racks/960 Tubes

 Specifications

• Maximum Working Volume with Screw Cap: 0.8 mL
• Maximum Working Volume with TPE Septum Cap: 0.7 mL
• Tube Format: 96-format
• Thread Type: External
• Coding: 2D code on base; 1D barcode and human-readable number on side
• Tube Height: 36.9 mm
• Tube Height with Screw Cap: 40.3 mm
• Tube Height with Septum Cap: 38.1 mm
• Inner Diameter: 6.5 mm
• Outer Diameter with Cap: 8.7 mm
• Center-to-Center Spacing: 9.0 mm
• Minimum Storage Temperature with Screw Cap: -196°C
• Minimum Storage Temperature with Septum Cap: -80°C
• Tube Height in Rack with Screw Cap: 41.2 mm
• Tube Height in Rack with Septum Cap: 39.0 mm
• Overall Rack Height with Lid: 43.9 mm
